SHREERAM ELECTRONICS

Temperature Indicators /Controllers

Digital Temperature Indicatore / Controllers and RTD Simulator
	Digital Temperature Meters employs the latest advance in electronics .This compact instrument provides a clear easy to read digital LCD display measuring 10 mm high 7 segment LCD display . Principle of operation The sensor input is amplified by a low drift amplifier .this signal is fed to an analog to digital converter .he AD converter displays the scaled temperature value on 3 1/2 digit LCD display. Digital Temperature finds applications inthe field of petrochemical ,fertilizer ,power stations , sugar ,paper glass ,metal and other industries . Rs.1000 and Up	Digital Temperature Meters
Add your content here	Add your content here	Add your content here

	Temperature Indicator / Controller   Digital Temperature Indicator / Controller employ the latest advance in electronics .This compact unit provides a clear easy to read digital display with LED Digits measuring 10mm high 7 segment LED Display . Principle of operation :- The sensor input is amplified by a low drift amplifier .This signal is fed to an Anolog to Digital converter .The ADC displays the scaled temperature value on an LED display and compares it with the temperature set points ON/OFF Control action The required temperature (set point ) is set on the digital display by turning the SET temperature potentiometer ,with the set push button switch pressed . As long as the process temperature is below the set point the relay is ON .When the temperature is reached to set temperature the relay is put OFF .This normally switches off the heating system .As temperature drops the relay is swiched ON again Applications It finds applications in the field of Petrochemicals,Fertilisers,Power stations, Sugar,Paper,Paint ,Chemical ,Glass and Metal industries . Rs.1500 and up Temperature Indicator / Controller

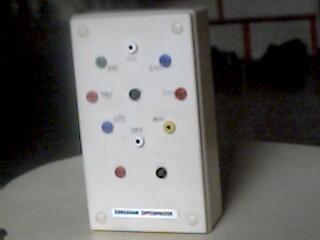

	Calibrator for RTD Based Temperature Indicators & Controllers RTD Simulator RTD Simulator This handy instrument is very useful to calibrate RTD Sensor Based Temperature meters and controller .RTD simulator require no power due to small size it is very useful to test Temperature meters and controller accurately up to 600 degree C .at site or in laboratory or in woks Rs.1000 and up
