SHREERAM ELECTRONICS

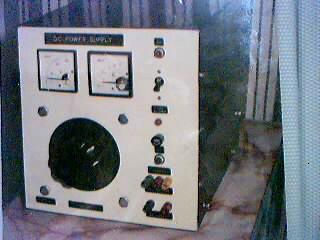

	Variable Voltage AC/DC Isolated Power Supply   0 - 270 V-10 A  AC/DC Isolated Variable Voltage Supply is designed to  use for industrial applications like testing equipments and panels in production line and testing circuits in laboratory and other industrial applications . isolated output provide safety to operator .Fast acting  Miniature circuit breaker protects equipment from short circuit and heavy current . Rs.10000 and up 0-270 V AC/DC Isolated Power Supply

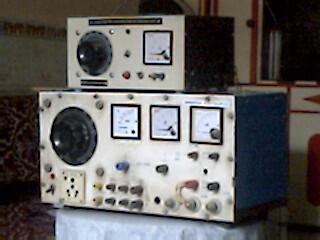

	0-300V AC/DC Variable Voltage and High Current Low Voltage Power Source   Multiple output Power source is designed as per need of the industry which supplies 0-270 V AC and DC at 8 Amp Current beside the power source gives low votage high current (100 Ams) AC out put .Applications including testing of circuits in R & D . Component ,Panels testing in production line . Low voltage high current output is very useful for checking miniature circuit breakers,  current relays,ac current meter,shunts and many applications in industry and at service centres . Rs.15000 and up Multi Output Power Source

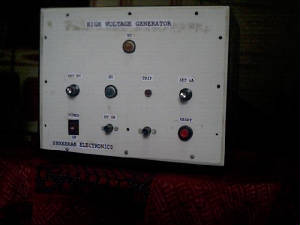

	High Voltage Generators 20 KV DC High Voltage Generator In all types of electrical equipment ,satisfactory and safe performance can be ensured only by the use of proper levels of insulation , which can judged by carrying out a high voltage test on the insulation for a prescribed time period .High Voltage tests of this nature are considered universally of the greatest importance and consequently they     are   prescribed for all electrical  apparatus as a part of the routine  tests.     Shreeram Electronics is designed High Voltage Generator Type 25/100. This unit generates  25 KV DC at maximum 200µA.HV Generator have built in KV meter and micro Ammeter.  Over Current trip circuit built in facility is provided .When out put load current exceeds than set limit trip relay operates ,Trip LED indicator glows and  output voltage is disconnected , and remains in same condition until fault is not removed. Only after fault removed and  Reset push button switch pressing output voltage will appear at HV output . Out put KV voltage  can vary  in some extend . Other KV Voltages ranges are available as per customers requirements   This High Voltage Generator have wide applications  for testing  in rubber , Glass , PVC, FRP Dye Chemical and mining industries.  testing insulation and other applications. Rs. 5000 and up
